An abstraction of window slider, also inherited by both eager and lazy. More...

#include <AbstractWS.h>

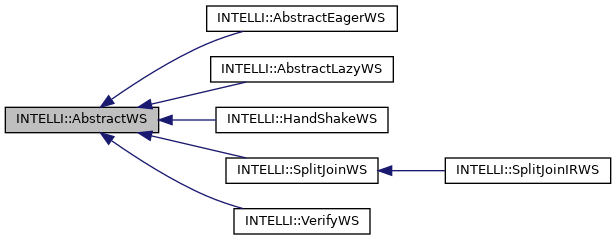

Inheritance diagram for INTELLI::AbstractWS:

[legend]

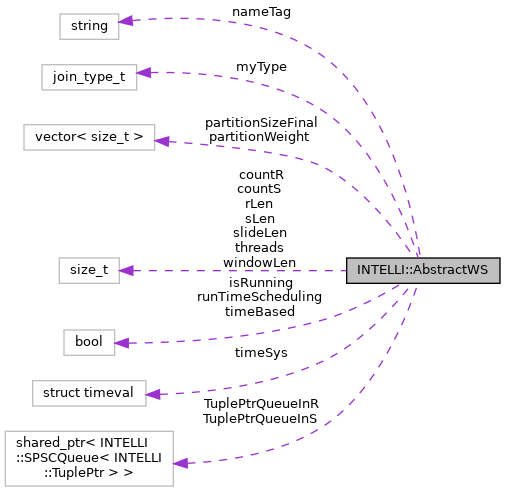

Collaboration diagram for INTELLI::AbstractWS:

[legend]

Public Member Functions
void	setTimeBased (bool ts)
	to configure the window type More...

bool	isTimeBased ()
	to read the window type More...

void	setRunTimeScheduling (bool r)
	to configure the scheduling place More...

bool	isRunTimeScheduling ()
	to read the scheduling type More...

void	setWindowLen (size_t wl)
	to set the length of window More...

void	setSlideLen (size_t sli)
	set the length of slide More...

size_t	getSlideLen ()
	get the length of slide More...

void	setParallelSMP (size_t threads)
	to set the parallel level under SMP model More...

void	reset ()
	reset everything needed

size_t	getTimeStamp ()
	to get the time stamp More...

	AbstractWS (size_t sLen, size_t rLen)
	to init the slider with specific length of queue More...

virtual void	feedTupleS (TuplePtr ts)
	to feed a tuple s More...

virtual void	feedTupleR (TuplePtr tr)
	to feed a tuple R More...

virtual void	initJoinProcessors ()
	to init the initJoinProcessors More...

virtual void	terminateJoinProcessors ()
	to terminate the join processors

virtual void	waitAckFromJoinProcessors ()
	to wait the response of join processors

virtual size_t	getJoinResult ()
	to get the result of join More...

struct timeval	getSysTime ()
	to get the inline timee structure, the timeSys member More...

void	setSysTime (struct timeval tv)
	Set the time structure value ,the timeSys member. More...

string	getName ()
	get the name of the slider More...

Protected Member Functions
size_t	oldestWindowBelong (size_t ts)
	To get the possible oldest a time stamp belongs to. More...

Protected Attributes
INTELLI::join_type_t	myType = INTELLI::CNT_BASED

size_t	countS

size_t	countR

size_t	windowLen = 0

size_t	slideLen = 1

std::vector< size_t >	partitionWeight

std::vector< size_t >	partitionSizeFinal

size_t	threads

size_t	sLen

size_t	rLen

bool	runTimeScheduling = false

bool	timeBased = false

bool	isRunning = false

struct timeval	timeSys

TuplePtrQueue	TuplePtrQueueInS

TuplePtrQueue	TuplePtrQueueInR

string	nameTag

Detailed Description

An abstraction of window slider, also inherited by both eager and lazy.

Class that is inherited using public inheritance

Author: Tony Zeng

Note

To init and run, follow the functions below to start a WS

Configure the window type, time or count, setTimeBased
Configure window length: setWindowLen
Configure slide length: setSlideLen (default is 1 if not called)
Set parallel executing behavior on SMP,setParallelSMP
Optional, (setRunTimeScheduling)
To make the parallel join processors started, initJoinProcessors
Feed tuples feedTupleS or feedTupleR
Terminate, by terminateJoinProcessors

Constructor & Destructor Documentation

◆ AbstractWS()

INTELLI::AbstractWS::AbstractWS	(	size_t	sLen,
		size_t	rLen
	)

to init the slider with specific length of queue

Parameters

sLen	the length of S queue
rLen	the length of R queue

Member Function Documentation

◆ feedTupleR()

virtual void INTELLI::AbstractWS::feedTupleR ( TuplePtr tr )

inlinevirtual

to feed a tuple R

Parameters

tr	the tuple r

Note: this function is thread-safe :)

Reimplemented in INTELLI::SplitJoinWS, and INTELLI::HandShakeWS.

◆ feedTupleS()

virtual void INTELLI::AbstractWS::feedTupleS ( TuplePtr ts )

inlinevirtual

to feed a tuple s

Parameters

ts	the tuple s

Note: this function is thread-safe :)

Reimplemented in INTELLI::SplitJoinWS, and INTELLI::HandShakeWS.

◆ getJoinResult()

virtual size_t INTELLI::AbstractWS::getJoinResult ( )

inlinevirtual

to get the result of join

Returns: how many tuples are joined

Note: only called after all join processors are stopped ,use terminateJoinProcessors to achieve this

Reimplemented in INTELLI::VerifyWS, INTELLI::SplitJoinWS, INTELLI::HandShakeWS, INTELLI::AbstractLazyWS, and INTELLI::AbstractEagerWS.

◆ getName()

string INTELLI::AbstractWS::getName ( )

inline

get the name of the slider

Returns: the nameTag;

◆ getSlideLen()

size_t INTELLI::AbstractWS::getSlideLen ( )

inline

get the length of slide

Returns: the length of slide

◆ getSysTime()

struct timeval INTELLI::AbstractWS::getSysTime ( )

inline

to get the inline timee structure, the timeSys member

Returns: the timeSys member

◆ getTimeStamp()

size_t INTELLI::AbstractWS::getTimeStamp ( )

inline

to get the time stamp

Returns: the time stamp, default in 10 us

◆ initJoinProcessors()

virtual void INTELLI::AbstractWS::initJoinProcessors ( )

inlinevirtual

to init the initJoinProcessors

Note: only after this is called can we start to feed tuples

Reimplemented in INTELLI::VerifyWS, INTELLI::SplitJoinWS, INTELLI::SplitJoinIRWS, INTELLI::HandShakeWS, INTELLI::AbstractLazyWS, and INTELLI::AbstractEagerWS.

◆ isRunTimeScheduling()

bool INTELLI::AbstractWS::isRunTimeScheduling ( )

inline

to read the scheduling type

Returns: wether the runtime schedules

◆ isTimeBased()

bool INTELLI::AbstractWS::isTimeBased ( )

inline

to read the window type

Returns: wether the slider is time-baesd

◆ oldestWindowBelong()

size_t INTELLI::AbstractWS::oldestWindowBelong ( size_t ts )

inlineprotected

To get the possible oldest a time stamp belongs to.

Parameters

ts	The time stamp

Returns: The window number, start from 0

◆ setParallelSMP()

void INTELLI::AbstractWS::setParallelSMP ( size_t threads )

inline

to set the parallel level under SMP model

Parameters

threads to how many threads will run the join

◆ setRunTimeScheduling()

void INTELLI::AbstractWS::setRunTimeScheduling ( bool r )

inline

to configure the scheduling place

Parameters

r	wether let runtime schedule

◆ setSlideLen()

void INTELLI::AbstractWS::setSlideLen ( size_t sli )

inline

set the length of slide

Parameters

sli	The assigned length

◆ setSysTime()

void INTELLI::AbstractWS::setSysTime ( struct timeval tv )

inline

Set the time structure value ,the timeSys member.

Parameters

tv The value

◆ setTimeBased()

void INTELLI::AbstractWS::setTimeBased ( bool ts )

inline

to configure the window type

Parameters

ts	wether the slider is time-baesd

◆ setWindowLen()

void INTELLI::AbstractWS::setWindowLen ( size_t wl )

inline

to set the length of window

Parameters

wl	the window length

Member Data Documentation

◆ timeSys

struct timeval INTELLI::AbstractWS::timeSys

protected

timeval structure from linux, <sys/time.h>

The documentation for this class was generated from the following file:

include/WindowSlider/AbstractWS.h
