An abstraction of lazy window slider, also inherited by other lazy window slider. More...

#include <WindowSlider/AbstractLazyWS.h>

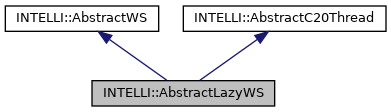

Inheritance diagram for INTELLI::AbstractLazyWS:

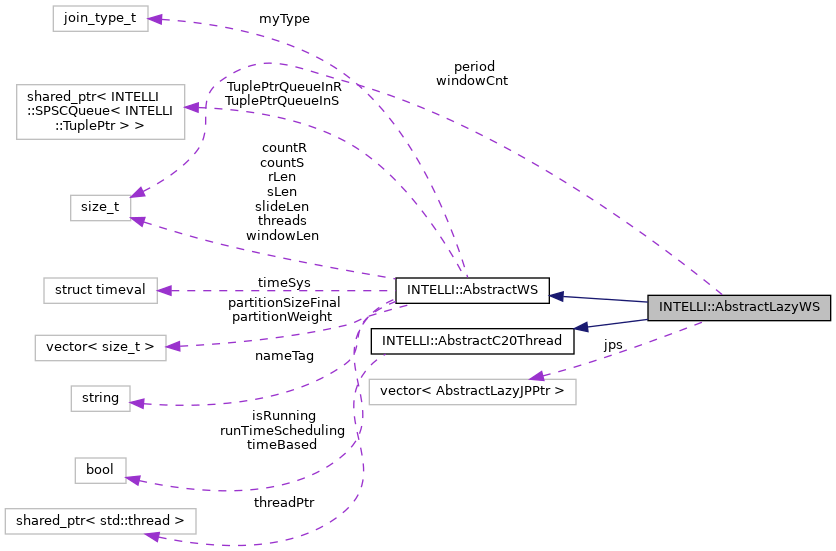

Collaboration diagram for INTELLI::AbstractLazyWS:

[legend]

Public Member Functions
	AbstractLazyWS (size_t sLen, size_t rLen)
	to init the slider with specific length of queue More...

virtual void	initJoinProcessors ()
	to init the initJoinProcessors More...

virtual void	terminateJoinProcessors ()
	to terminate the join processors

virtual void	waitAckFromJoinProcessors ()
	to wait the response of join processors

virtual size_t	getJoinResult ()
	to get the result of join More...

Public Member Functions inherited from INTELLI::AbstractWS
void	setTimeBased (bool ts)
	to configure the window type More...

bool	isTimeBased ()
	to read the window type More...

void	setRunTimeScheduling (bool r)
	to configure the scheduling place More...

bool	isRunTimeScheduling ()
	to read the scheduling type More...

void	setWindowLen (size_t wl)
	to set the length of window More...

void	setSlideLen (size_t sli)
	set the length of slide More...

size_t	getSlideLen ()
	get the length of slide More...

void	setParallelSMP (size_t threads)
	to set the parallel level under SMP model More...

void	reset ()
	reset everything needed

size_t	getTimeStamp ()
	to get the time stamp More...

	AbstractWS (size_t sLen, size_t rLen)
	to init the slider with specific length of queue More...

virtual void	feedTupleS (TuplePtr ts)
	to feed a tuple s More...

virtual void	feedTupleR (TuplePtr tr)
	to feed a tuple R More...

struct timeval	getSysTime ()
	to get the inline timee structure, the timeSys member More...

void	setSysTime (struct timeval tv)
	Set the time structure value ,the timeSys member. More...

string	getName ()
	get the name of the slider More...

Public Member Functions inherited from INTELLI::AbstractC20Thread
void	startThread ()
	to start this thread

void	joinThread ()
	the thread join function

Protected Member Functions
virtual void	inlineMain ()
	The inline 'main" function of thread, as an interface. More...

Protected Member Functions inherited from INTELLI::AbstractWS
size_t	oldestWindowBelong (size_t ts)
	To get the possible oldest a time stamp belongs to. More...

Protected Attributes
vector< AbstractLazyJPPtr >	jps

size_t	period = 0

size_t	windowCnt = 0

Protected Attributes inherited from INTELLI::AbstractWS
INTELLI::join_type_t	myType = INTELLI::CNT_BASED

size_t	countS

size_t	countR

size_t	windowLen = 0

size_t	slideLen = 1

std::vector< size_t >	partitionWeight

std::vector< size_t >	partitionSizeFinal

size_t	threads

size_t	sLen

size_t	rLen

bool	runTimeScheduling = false

bool	timeBased = false

bool	isRunning = false

struct timeval	timeSys

TuplePtrQueue	TuplePtrQueueInS

TuplePtrQueue	TuplePtrQueueInR

string	nameTag

Protected Attributes inherited from INTELLI::AbstractC20Thread
std::shared_ptr< std::thread >	threadPtr

Detailed Description

An abstraction of lazy window slider, also inherited by other lazy window slider.

Author: Tony Zeng

Note

detailed description: To init and run, follow the functions below to start a WS

Configure the window type, time or count, setTimeBased
Configure window length: setWindowLen
Configure slide length: setSlideLen (default is 1 if not called)
Set parallel executing behavior on SMP,setParallelSMP
Optional, (setRunTimeScheduling)
To make the parallel join processors started, initJoinProcessors
Feed tuples feedTupleS or feedTupleR
Terminate, by terminateJoinProcessors

Constructor & Destructor Documentation

◆ AbstractLazyWS()

INTELLI::AbstractLazyWS::AbstractLazyWS	(	size_t	sLen,
		size_t	rLen
	)

inline

to init the slider with specific length of queue

Parameters

sLen	the length of S queue
rLen	the length of R queue

Member Function Documentation

◆ getJoinResult()

virtual size_t INTELLI::AbstractLazyWS::getJoinResult ( )

virtual

to get the result of join

Returns: how many tuples are joined

Note: only called after all join processors are stopped ,use terminateJoinProcessors to achieve this

Reimplemented from INTELLI::AbstractWS.

◆ initJoinProcessors()

virtual void INTELLI::AbstractLazyWS::initJoinProcessors ( )

virtual

to init the initJoinProcessors

Note: only after this is called can we start to feed tuples

Reimplemented from INTELLI::AbstractWS.

◆ inlineMain()

virtual void INTELLI::AbstractLazyWS::inlineMain ( )

protectedvirtual

The inline 'main" function of thread, as an interface.

Note: Normally re-write this in derived classes

Reimplemented from INTELLI::AbstractC20Thread.

The documentation for this class was generated from the following file:

include/WindowSlider/AbstractLazyWS.h
