INTELLI::SplitJoinIRWS Class Reference

The eager window slider of split join, which also shares the intermediate results (IR) More...

#include <WindowSlider/SplitJoinIRWS.h>

Inheritance diagram for INTELLI::SplitJoinIRWS:

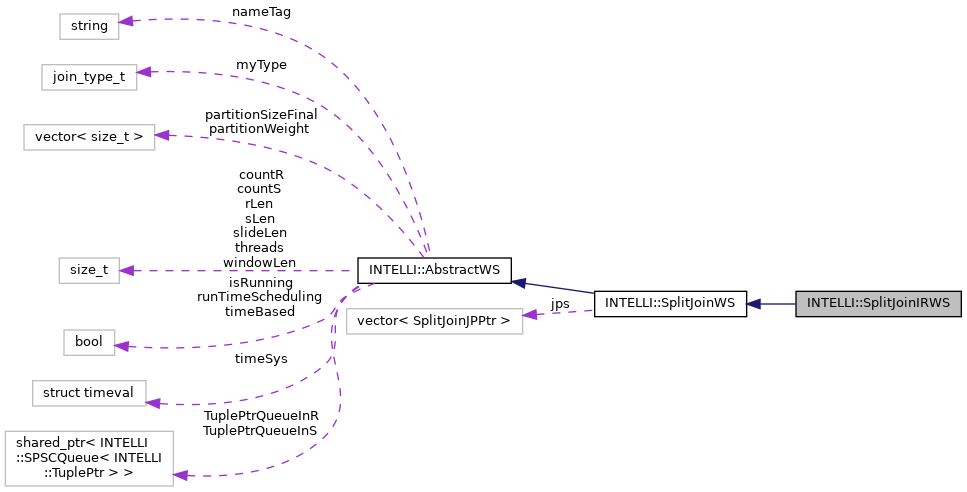

Collaboration diagram for INTELLI::SplitJoinIRWS:

Public Member Functions
	SplitJoinIRWS (size_t sLen, size_t rLen)
	to init the slider with specific length of queue More...
void	initJoinProcessors ()
	to init the initJoinProcessors More...
Public Member Functions inherited from INTELLI::SplitJoinWS
	SplitJoinWS (size_t sLen, size_t rLen)
	to init the slider with specific length of queue More...
void	initJoinProcessors ()
	to init the initJoinProcessors More...
void	terminateJoinProcessors ()
	to terminate the join processors
void	waitAckFromJoinProcessors ()
	to wait the response of join processors
size_t	getJoinResult ()
	to get the result of join More...
virtual void	feedTupleS (TuplePtr ts)
	to feed a tuple s More...
virtual void	feedTupleR (TuplePtr tr)
	to feed a tuple R More...
Public Member Functions inherited from INTELLI::AbstractWS
void	setTimeBased (bool ts)
	to configure the window type More...
bool	isTimeBased ()
	to read the window type More...
void	setRunTimeScheduling (bool r)
	to configure the scheduling place More...
bool	isRunTimeScheduling ()
	to read the scheduling type More...
void	setWindowLen (size_t wl)
	to set the length of window More...
void	setSlideLen (size_t sli)
	set the length of slide More...
size_t	getSlideLen ()
	get the length of slide More...
void	setParallelSMP (size_t threads)
	to set the parallel level under SMP model More...
void	reset ()
	reset everything needed
size_t	getTimeStamp ()
	to get the time stamp More...
	AbstractWS (size_t sLen, size_t rLen)
	to init the slider with specific length of queue More...
struct timeval	getSysTime ()
	to get the inline timee structure, the timeSys member More...
void	setSysTime (struct timeval tv)
	Set the time structure value ,the timeSys member. More...
string	getName ()
	get the name of the slider More...

Additional Inherited Members
Protected Member Functions inherited from INTELLI::SplitJoinWS
void	deliverTupleS (TuplePtr ts)
	deliver tuple s to join processors More...
void	deliverTupleR (TuplePtr tr)
	deliver tuple r to join processors More...
Protected Member Functions inherited from INTELLI::AbstractWS
size_t	oldestWindowBelong (size_t ts)
	To get the possible oldest a time stamp belongs to. More...
Protected Attributes inherited from INTELLI::SplitJoinWS
std::vector< SplitJoinJPPtr >	jps
Protected Attributes inherited from INTELLI::AbstractWS
INTELLI::join_type_t	myType = INTELLI::CNT_BASED
size_t	countS
size_t	countR
size_t	windowLen = 0
size_t	slideLen = 1
std::vector< size_t >	partitionWeight
std::vector< size_t >	partitionSizeFinal
size_t	threads
size_t	sLen
size_t	rLen
bool	runTimeScheduling = false
bool	timeBased = false
bool	isRunning = false
struct timeval	timeSys
TuplePtrQueue	TuplePtrQueueInS
TuplePtrQueue	TuplePtrQueueInR
string	nameTag

Detailed Description

The eager window slider of split join, which also shares the intermediate results (IR)

Note

detailed description: To init and run, follow the functions below to start a WS

• Configure the window type, time or count, setTimeBased
• Configure window length: setWindowLen
• Configure slide length: setSlideLen (default is 1 if not called)
• Set parallel executing behavior on SMP,setParallelSMP
• Optional, (setRunTimeScheduling)
• To make the parallel join processors started, initJoinProcessors
• Feed tuples feedTupleS or feedTupleR
• Terminate, by terminateJoinProcessors

Constructor & Destructor Documentation

SplitJoinIRWS()

INTELLI::SplitJoinIRWS::SplitJoinIRWS	(	size_t	sLen,
		size_t	rLen
	)

to init the slider with specific length of queue

Parameters

sLen	the length of S queue
rLen	the length of R queue

Member Function Documentation

initJoinProcessors()

void INTELLI::SplitJoinIRWS::initJoinProcessors ( )

virtual

to init the initJoinProcessors

Note

only after this is called can we start to feed tuples

Reimplemented from INTELLI::AbstractWS.

---

The documentation for this class was generated from the following file:

• include/WindowSlider/SplitJoinIRWS.h
