INTELLI::AbstractJoinAlgo Class Reference

The abstraction to describe a join algorithm, providing virtual function of join. More...

#include <JoinAlgo/AbstractJoinAlgo.h>

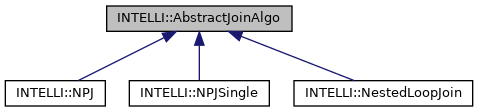

Inheritance diagram for INTELLI::AbstractJoinAlgo:

Collaboration diagram for INTELLI::AbstractJoinAlgo:

Public Member Functions
virtual size_t	join (TuplePtrQueue ts, TuplePtrQueue tr, int threads=1)
	The function to execute join, batch of both. More...
virtual size_t	join (TuplePtr *ts, TuplePtr *tr, size_t tsLen, size_t trLen, int threads=1)
	The function to execute join, batch of both, legacy way. More...
virtual size_t	join (TuplePtr *ts, TuplePtr tr, size_t tsLen, int threads=1)
	The function to execute join, batch of one, tuple of another. More...
virtual size_t	join (TuplePtrQueue ts, TuplePtr tr, int threads=1)
	The function to execute join, batch of one, tuple of another. More...
void	setAlgoName (string name)
	set the name of algorithm More...
string	getAlgoName ()
	get the name of algorithm More...

Protected Attributes
string	nameTag

Detailed Description

The abstraction to describe a join algorithm, providing virtual function of join.

Note

The derived new algorithm should contain the join interface, for batch-batch and batch-tuple

Member Function Documentation

getAlgoName()

string INTELLI::AbstractJoinAlgo::getAlgoName ( )

inline

get the name of algorithm

Returns

The name

join() [1/4]

virtual size_t INTELLI::AbstractJoinAlgo::join ( TuplePtr *  ts, TuplePtr *  tr, size_t  tsLen, size_t  trLen, int  threads = 1  )

inlinevirtual

The function to execute join, batch of both, legacy way.

Parameters

ts	The tuples of stream S, legacy pointer
tr	The tuples of stream R, legacy pointer
tsLen	The length of S
trLen	The length of R
threads	The parallel threads

Returns

The joined tuples

Warning

This is a legacy function, avoid using it if possible

Reimplemented in INTELLI::NPJSingle, INTELLI::NPJ, and INTELLI::NestedLoopJoin.

join() [2/4]

virtual size_t INTELLI::AbstractJoinAlgo::join ( TuplePtr *  ts, TuplePtr  tr, size_t  tsLen, int  threads = 1  )

inlinevirtual

The function to execute join, batch of one, tuple of another.

Parameters

ts	The tuples of stream S, legacy pointer
tr	The tuples of stream R, one tuple
tsLen	The length of S
threads	The parallel threads

Returns

The joined tuples

Warning

This is a legacy function, avoid using it if possible

Reimplemented in INTELLI::NPJSingle, INTELLI::NPJ, and INTELLI::NestedLoopJoin.

join() [3/4]

virtual size_t INTELLI::AbstractJoinAlgo::join ( TuplePtrQueue  ts, TuplePtr  tr, int  threads = 1  )

inlinevirtual

The function to execute join, batch of one, tuple of another.

Parameters

ts	The tuples of stream S
tr	The tuple of stream R
threads	The parallel threads

Returns

The joined tuples

Reimplemented in INTELLI::NPJSingle, INTELLI::NPJ, and INTELLI::NestedLoopJoin.

join() [4/4]

virtual size_t INTELLI::AbstractJoinAlgo::join ( TuplePtrQueue  ts, TuplePtrQueue  tr, int  threads = 1  )

inlinevirtual

The function to execute join, batch of both.

Parameters

ts	The tuples of stream S
tr	The tuples of stream R
threads	The parallel threads

Returns

The joined tuples

Todo:

Add AMP and NUMA support in the future, so far only generic SMP

Reimplemented in INTELLI::NPJSingle, INTELLI::NPJ, and INTELLI::NestedLoopJoin.

setAlgoName()

void INTELLI::AbstractJoinAlgo::setAlgoName ( string  name )

inline

set the name of algorithm

Parameters

name	Algorithm name

---

The documentation for this class was generated from the following file:

• include/JoinAlgo/AbstractJoinAlgo.h
