INTELLI::AbstractJP Class Reference

The basic class of join processor. More...

#include <JoinProcessor/AbstractJP.h>

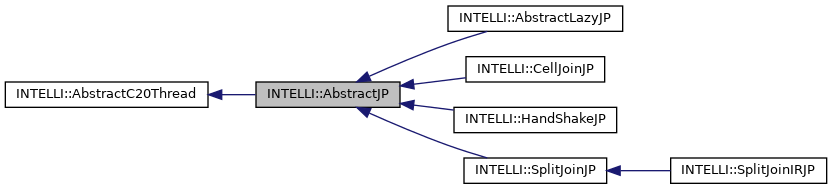

Inheritance diagram for INTELLI::AbstractJP:

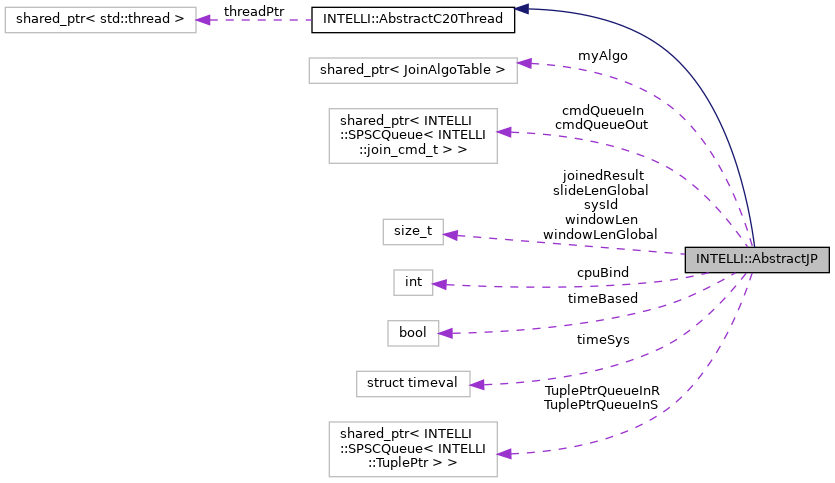

Collaboration diagram for INTELLI::AbstractJP:

Public Member Functions
void	inputCmd (join_cmd_t cmd)
	input an outside command More...
join_cmd_t	waitResponse ()
	wait and return the response of this join processor More...
virtual void	init (size_t sLen, size_t rLen, size_t _sysId)
	init the join processor with buffer/queue length and id More...
void	setTimeBased (bool ts)
	to configure the window type More...
bool	isTimeBased ()
	to read the window type More...
void	setWindowLen (size_t wl)
	to set the length of window More...
void	setGlobalWindow (size_t wlen, size_t sli)
	set the window parameters of global window More...
virtual void	feedTupleS (TuplePtr ts)
	feed a tuple s into the s input queue More...
virtual void	feedTupleR (TuplePtr tr)
	feed a tuple r into the r input queue More...
void	setTimeVal (struct timeval tv)
	set the timeval struct More...
size_t	getTimeStamp ()
	Get the time stamp. More...
size_t	getJoinedResult ()
	get the join results More...
void	setCore (int id)
	bind to specific core More...
Public Member Functions inherited from INTELLI::AbstractC20Thread
void	startThread ()
	to start this thread
void	joinThread ()
	the thread join function

Public Attributes
int	cpuBind = -1

Protected Member Functions
void	sendResponseCmd (join_cmd_t cmd)
void	sendAck ()
bool	testCmd (join_cmd_t cmd)
	To test if a cmd is remained in queue and in desired cmd. More...
virtual void	inlineMain ()
	The 'main' function of AbstractP. More...
size_t	oldestWindowBelong (size_t ts)
	To get the possible oldest window a time stamp belongs to. More...

Protected Attributes
TuplePtrQueue	TuplePtrQueueInS
TuplePtrQueue	TuplePtrQueueInR
CmdQueuePtr	cmdQueueIn
CmdQueuePtr	cmdQueueOut
size_t	sysId
struct timeval	timeSys
bool	timeBased = false
size_t	windowLen = 0
size_t	windowLenGlobal = 0
size_t	slideLenGlobal = 0
size_t	joinedResult = 0
JoinAlgoTablePtr	myAlgo
Protected Attributes inherited from INTELLI::AbstractC20Thread
std::shared_ptr< std::thread >	threadPtr

Detailed Description

The basic class of join processor.

Note

first init the JP before startThread

Member Function Documentation

feedTupleR()

virtual void INTELLI::AbstractJP::feedTupleR ( TuplePtr  tr )

inlinevirtual

feed a tuple r into the r input queue

Parameters

tr

The tuple

feedTupleS()

virtual void INTELLI::AbstractJP::feedTupleS ( TuplePtr  ts )

inlinevirtual

feed a tuple s into the s input queue

Parameters

ts

The tuple

getJoinedResult()

size_t INTELLI::AbstractJP::getJoinedResult ( )

inline

get the join results

Returns

Tuples joined

getTimeStamp()

size_t INTELLI::AbstractJP::getTimeStamp ( )

inline

Get the time stamp.

Returns

The time stamp, in TIME_STEP us

init()

virtual void INTELLI::AbstractJP::init ( size_t  sLen, size_t  rLen, size_t  _sysId  )

inlinevirtual

init the join processor with buffer/queue length and id

Parameters

sLen	The length of S queue and buffer
rLen	The length of R queue and buffer
_sysId	The system id

Reimplemented in INTELLI::SplitJoinJP, INTELLI::SplitJoinIRJP, INTELLI::HandShakeJP, INTELLI::CellJoinJP, and INTELLI::AbstractLazyJP.

inlineMain()

virtual void INTELLI::AbstractJP::inlineMain ( )

inlineprotectedvirtual

The 'main' function of AbstractP.

Note

This is a re-implementation of AbstractC20Thread

Reimplemented from INTELLI::AbstractC20Thread.

Reimplemented in INTELLI::SplitJoinJP, INTELLI::SplitJoinIRJP, INTELLI::HandShakeJP, INTELLI::CellJoinJP, and INTELLI::AbstractLazyJP.

inputCmd()

void INTELLI::AbstractJP::inputCmd ( join_cmd_t  cmd )

inline

input an outside command

Parameters

cmd	The Command

isTimeBased()

bool INTELLI::AbstractJP::isTimeBased ( )

inline

to read the window type

Returns

wether the slider is time-baesd

oldestWindowBelong()

size_t INTELLI::AbstractJP::oldestWindowBelong ( size_t  ts )

inlineprotected

To get the possible oldest window a time stamp belongs to.

Parameters

ts	The time stamp

Returns

The window number, start from 0

setCore()

void INTELLI::AbstractJP::setCore ( int  id )

inline

bind to specific core

Parameters

id	The core id

setGlobalWindow()

void INTELLI::AbstractJP::setGlobalWindow ( size_t  wlen, size_t  sli  )

inline

set the window parameters of global window

Parameters

wlen	window length
sli	slide

setTimeBased()

void INTELLI::AbstractJP::setTimeBased ( bool  ts )

inline

to configure the window type

Parameters

ts	wether the slider is time-baesd

setTimeVal()

void INTELLI::AbstractJP::setTimeVal ( struct timeval  tv )

inline

set the timeval struct

Parameters

tv	The struct to be set

setWindowLen()

void INTELLI::AbstractJP::setWindowLen ( size_t  wl )

inline

to set the length of window

Parameters

wl	the window length

testCmd()

bool INTELLI::AbstractJP::testCmd ( join_cmd_t  cmd )

inlineprotected

To test if a cmd is remained in queue and in desired cmd.

Parameters

cmd	The desired command

Returns

true if such command exists

waitResponse()

join_cmd_t INTELLI::AbstractJP::waitResponse ( )

inline

wait and return the response of this join processor

Returns

the response command

Member Data Documentation

timeSys

struct timeval INTELLI::AbstractJP::timeSys

protected

timeval structure from linux, <sys/time.h>

---

The documentation for this class was generated from the following file:

• include/JoinProcessor/AbstractJP.h
